Intermediate wall lock for lorries - clamping boards for securing lorry loads
Clamping boards for lorries, or intermediate wall locks, are an easy-to-use means of mechanically securing loads on tarpaulin-covered vehicles or flatbed vehicles. They are simply hooked into the wooden slats and fixed in place using the clamping lever. They allow the load compartment to be divided into different areas and thus create a secure form of load securing. The clamping boards are tensioned horizontally in the vehicle using a lever. The extendable aluminium clamping boards for trucks are equipped with steel end pieces and are rubberised on both clamping sides. They offer a load capacity of 400daN and provide optimum protection for your load.
The high quality of workmanship is also our top priority with this product. It determines how well the product works in everyday use. The aluminium intermediate wall fasteners from Sandax have a rubberised protective cap on both sides and offer a blocking force of up to 400daN.
If you can't find the right product in our standard range, contact us to find a customised solution in the area of intermediate wall fasteners!
Overview of intermediate wall fasteners made of aluminium
The following clamping boards are available from us
Aluminum partition closure 2,400-2,700mm extendable, blue
with steel end pieces End fitting (handle): Blue Blocking force 400daN 1 pallet=105 pieces
Aluminum partition wall closure 1,220-1,520 mm extendable
When it comes to the safe separation and securing of cargo in transport vehicles , the aluminum partition wall closure from Sandax is an indispensable solution. This high-quality aluminum clamping system can be variably extended from 1,220 mm to 1,520 mm and, with a blocking force of approximately 400 daN, ensures maximum stability in the cargo area. The system not only offers flexible adaptation to different cargo space sizes , but also guarantees simple, quick, and secure fastening thanks to the sophisticated lever-clamping mechanism – without any additional tools . This protects your load from dangerous slipping , minimizes the risk of transport damage , and ensures legally compliant, DIN-compliant load securing . Technical details at a glance Main body material : High-quality, lightweight aluminum End pieces : steel with anti-slip rubber coating Length adjustment range : 1,220 mm – 1,520 mm (infinitely adjustable) Blocking force : approx. 400 daN Clamping mechanism : Lever clamping system for quick application Standards : Complies with the requirements for load securing according to VDI 2700 Your advantages with the Sandax aluminum partition wall closure ✅ Maximum stability with low weight : Thanks to the aluminum body, the partition wall closure is easy to handle without sacrificing stability - ideal for daily use. ✅ Easy adaptation to different cargo space sizes : With the extendable system (1,220–1,520 mm), the tool adapts flexibly to different vehicle widths and transport requirements. ✅ Secure hold and surface protection : The rubberized steel end pieces prevent slipping, protect the vehicle walls and ensure stable fixation. ✅ Time-saving handling : The lever clamping system enables assembly and disassembly in seconds – without tools and without great effort. ✅ Standard-compliant load securing : The product meets the requirements of VDI 2700 and helps to comply with legal regulations. ✅ Wide range of applications : Suitable for vans, trucks, delivery vehicles and much more – an all-rounder for logistics, trades and forwarding. Typical applications for partition wall closures Logistics & Freight Forwarding : Securing pallets, boxes and general cargo in trucks and vans. Construction & Crafts : Securing tools, building materials and equipment on construction vehicles. Moving and furniture transport : Separation and stabilization of furniture, moving boxes or delicate items. Warehouse logistics : Flexible use in storage rooms or on transport platforms. Application note for the partition wall closure Simply adjust the partition wall closures to the desired length. Place it between the vehicle walls. Operate the lever mechanism until the lock is securely tightened and secured. Check the tension: Adjust if necessary to achieve optimal blocking force. Tip : In combination with other Sandax load securing elements such as tensioning belts or anti-slip mats, you can sustainably optimize your transport safety. Why Sandax is your first choice Sandax stands for quality you can rely on – developed and tested for tough daily use. Our mechanical load securing products combine robust materials, sophisticated design and practical functionality to make your work easier while maximizing the safety of your transports. 👉 Get the Sandax aluminum partition lock now and invest in efficiency, safety, and durability . Order today and benefit from a professional tool that reliably protects your cargo – day after day!
Aluminum partition wall closure 1,500-1,800 mm extendable
With the extendable aluminum clamping board partition lock, you offer your cargo reliable and flexible protection during transport . This high-quality partition lock was specially designed for a wide range of applications, such as professional freight transport, moving, or everyday use in car trailers . The continuously adjustable length from 1,500 to 1,800 mm ensures perfect adaptation to different loading spaces and guarantees efficient and secure blocking of pallets, boxes, or other cargo. Advantages and features ✅ Adjustable partition closure : With just a few simple steps, the length can be adjusted precisely to the respective loading space - ideal for changing transport tasks. ✅ Robust material : Made of lightweight but extremely durable aluminum, the Alu partition wall lock impresses with a high blocking force of approx. 400 daN. ✅ Optimal load securing : Thanks to the effective blocking, the partition wall locks protect your goods from slipping and minimize transport damage on every journey. ✅ Practical handling : The closure is quick and easy to use; this makes it particularly suitable for users in the commercial forwarding sector, but also for private individuals with a car trailer or transport trailer. ✅ Versatile use : This partition wall closure is suitable for load securing for all types of trailers, car trailers and transport vehicles - it is the perfect choice for logistical flexibility. Technical details of the aluminum partition wall closure Material : aluminum Length : Extendable from 1500 mm to 1800 mm (150 cm to 180 cm or 1.5 m to 1.8 m) Blocking force : approx. 400 daN Usability : Blocking of cargo, pallets, boxes Packaging unit : 105 pieces per pallet Typical areas of application Load securing in car trailers Protection of pallets and boxes in vans or trucks Flexible security for removals and transport operations Quick adjustment for frequently changing load sizes Your advantage when buying Invest in optimal load securing with an " adjustable aluminum partition lock " that offers both durability and multifunctionality . The lightweight design facilitates handling, and the robust material ensures maximum reliability in daily use .
Aluminum partition wall closure 2,400-2,700mm extendable
Discover the aluminum partition lock – the ideal solution for professional load securing in transport vehicles, trucks , and also as a partition lock for car trailers or partition locks for other trailers. This high-quality product combines flexibility, robustness, and ease of use for daily logistics applications. Product highlights: Adjustable partition wall closure : Continuously extendable from 2,400 mm to 2,700 mm – adapts flexibly to different loading space widths. Partition wall closure aluminum : Made of lightweight but extremely stable aluminum for optimal handling and durability. High blocking force : With a blocking force of approx. 400 daN, the partition wall lock ensures that your load is securely held – even under demanding transport conditions. Easy to use : Installation is quick and easy, so you can secure your load in just a few steps. Versatile : Perfect for use as a partition wall closure in car trailers, trucks, vans and other commercial vehicles. Technical data for the aluminum partition wall closure Material : aluminum Adjustment range : 2,400 mm – 2,700 mm (240 cm - 270 cm or 2.4 m - 2.7 m) Blocking force : approx. 400 daN Application : Blocking pallets and packages during transport Weight : approx. 7.5kg Number of pieces per pallet : 105 Application areas : trucks, vans, containers, trailers Your benefits at a glance ✅ Efficient load securing with partition wall closure : Secures pallets, boxes and other packages reliably against slipping or tipping over ✅ Optimal use of space : The adjustable partition wall closure allows flexible adaptation to different loading spaces and ensures maximum use of the available space ✅ Durable and robust : The combination of aluminum profile and high-quality components guarantees a long service life – even with frequent use ✅ Mechanical load securing : Whether as a partition wall closure for trailers, for car trailers or in trucks – this aluminum clamping board is versatile Application areas of the aluminum partition wall closure 2.4m - 2.7m Partition wall closure for load securing for forwarding agents, logistics companies and shippers Partition wall closure car trailer for the safe transport of goods in the private and commercial sector Partition wall closure for trucks, vans and commercial vehicles of all types Rely on proven quality and innovative solutions from Sandax . With this aluminum partition lock, you're investing in a product that combines safety, efficiency, and cost-effectiveness. Trust in a partner who has stood for reliable load securing for years and sustainably optimizes your transport processes.
What are intermediate wall locks?
Partition closures, also known as truck clipboards, are adaptable devices that are available in
various materials such as aluminium, steel and sometimes metal. These devices are usually extendable and
adjustable to ensure an optimal fit for different vehicle interiors. Here are some typical features and
specifications:
- Materials: often made of aluminium for its lightness and corrosion resistance; steel versions available
for increased strength and durability.
- Load capacity: Some models offer a blocking force of up to 1000 daN, making them suitable for heavier
loads. However, standard aluminium models often only have around 400 daN.
- Adjustability: Many intermediate wall locks are adjustable to fit different load compartment sizes, from
small vans to large lorries.
Advantages of intermediate wall fasteners
The use of intermediate wall fasteners offers numerous advantages, including:- Increased safety: They stabilise the load and prevent it from shifting, which significantly improves
safety during transport.
- Flexibility: The adjustability of the latches allows users to customise the load space as required,
which is particularly beneficial for different load sizes.
- Protection of the load and the vehicle: Dropside fasteners prevent the load from hitting the vehicle
walls, which protects both the load and the vehicle.
Applications of intermediate wall locks & clamping board for lorries
Partition locks are essential components in the world of load securing, especially for transport by lorry, car trailer and other types of vehicle. These tools are specifically designed to keep loads safe and stable during transport by acting as physical barriers that effectively divide the load space into smaller sections. This is particularly important to minimise the risk of the load shifting or tipping over.
These aids are versatile and can be used in various means of transport and situations:- Trucks (lorries): Securing pallets and other large items of cargo.
- Car trailers: Ideal for securing small or medium-sized loads, especially on uneven roads.
- Vans & Sprinters: Clipboards are also sometimes used in sprinters and vans
Product overview and technical specifications
Our products are specifically designed to ensure optimal load securing in various transport environments. Aluminium intermediate wall lock Specifications:- Adjustability: Available in sizes from 1220mm to 2700mm, with the ability to adapt to different load
compartment dimensions.
- Material: Manufactured from high quality aluminium which offers high strength at low weight and has a
locking force of approximately 400 daN.
- Features: Our fasteners are rubberised on both sides to provide additional protection against
slipping and to protect the load and the vehicle walls from damage.
Partition Closures in Truck Cargo Areas

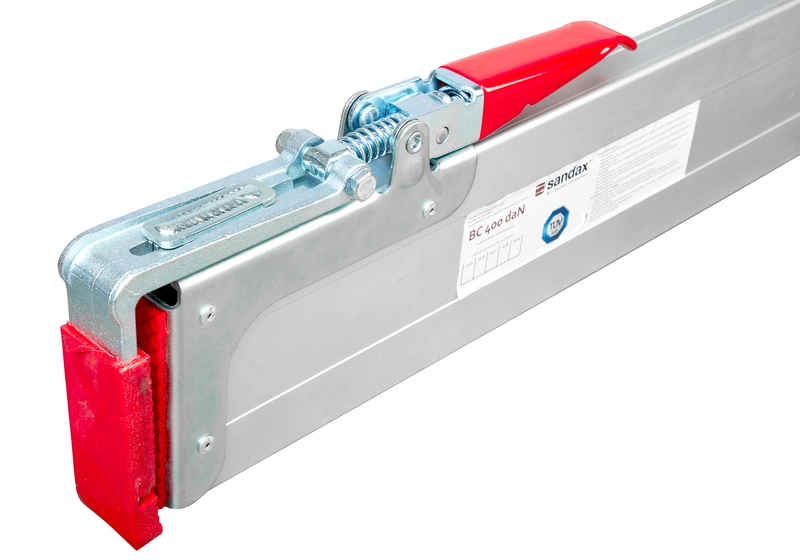

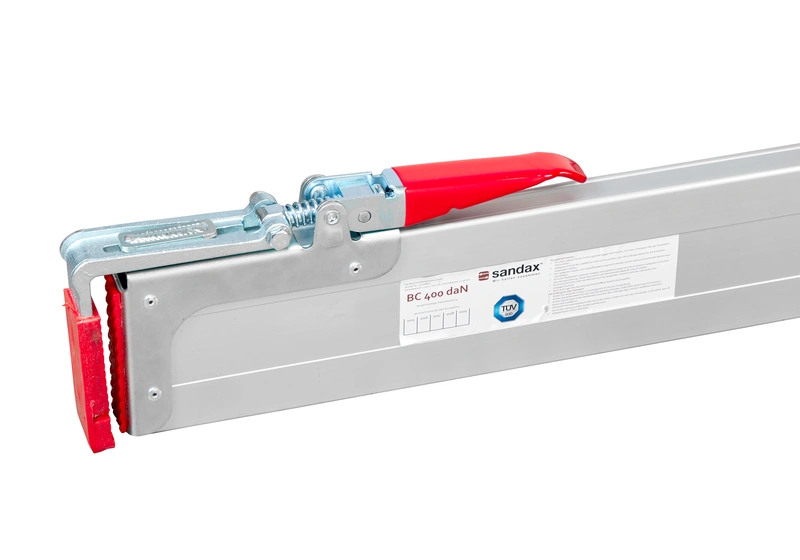

High-Quality End Caps
Applications for Pallets, Cartons, and General Cargo
Installation and handling of intermediate wall closures
The correct installation and proper handling of intermediate wall closures are critical to achieving the best possible safety and efficiency results. Here are some basic steps and tips to follow when installing these systems.Installation instructions:
- Planning: Before installation, it is important to accurately measure the dimensions of the cargo area
and select the appropriate bulkhead lock that can effectively support the size and weight of the load.
- Positioning: The partition wall lock should be positioned at the designated points within the load
compartment. Ensure that the fastener is firmly and securely in place.

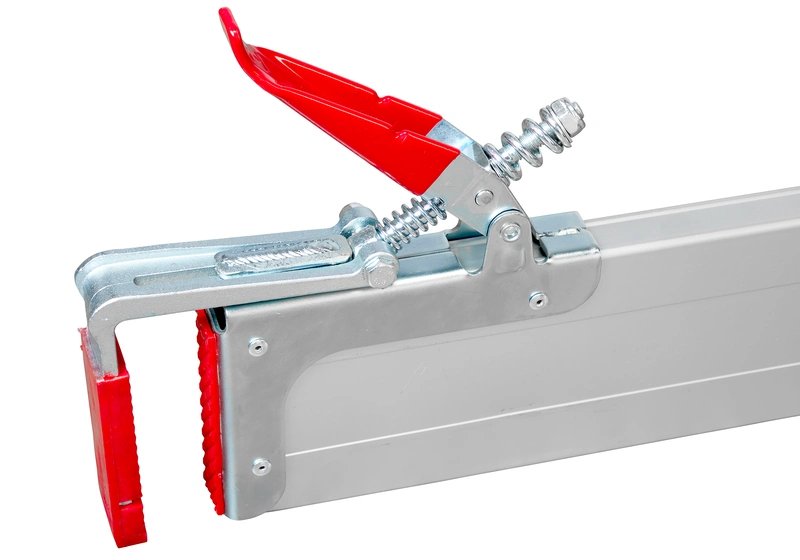

- Fixation: Use the tensioning lever of the intermediate wall lock to tension it firmly between the
walls of the means of transport. The rubberised ends help to prevent slipping and provide additional
protection for the load and the vehicle walls.
- Regular inspection: It is important to check the intermediate wall fasteners regularly for signs of
wear or damage and to ensure that they are always functioning correctly.
- Cleaning and maintenance: Keep the latches clean and free from dirt and debris that could affect
their functionality.
- Spare parts: Make sure you have access to spare parts in case any part of the closure needs to be
replaced to ensure the longevity and performance of the system.
Frequently Asked Questions About Cargo Partition Locks and Load Restraint Boards
Below you will find important questions and answers about cargo partition locks, adjustable load restraint boards, cargo retaining boards, and their use for mechanical load securing in trucks, vans, trailers, and box-body vehicles.
What is a cargo partition lock?
A cargo partition lock is a mechanical load restraint device used to secure cargo inside a vehicle. Also referred to as a load restraint board or adjustable cargo retaining board, it is used to block cargo, divide the loading area into sections, and help prevent pallets, cartons, furniture, or other goods from shifting or tipping over during transport.
What are load restraint boards used for in trucks?
Load restraint boards are used in trucks to secure cargo through positive blocking and divide the cargo area into flexible sections. They are particularly useful for partial loads, changing cargo, or frequent loading and unloading because they can be installed and removed quickly.
How does a cargo partition lock work?
A cargo partition lock is adjusted to the required length, positioned between suitable vehicle walls or engaged with existing wooden side slats, and secured using a tensioning lever. The lever mechanism braces the board horizontally across the cargo area, creating a stable barrier against cargo movement.
What are the benefits of cargo partition locks for load securing?
Cargo partition locks are quick to install, adjustable, and can be used without additional tools. They help prevent cargo from shifting, organize the loading area, and reduce the risk of transport damage. They are especially practical for varying interior widths and different package sizes.
What materials are Sandax cargo partition locks made from?
Sandax cargo partition locks are made of aluminium and fitted with steel end pieces. The aluminium construction keeps them lightweight and easy to handle, while the steel ends provide stability and durability for everyday transport operations.
Why do cargo partition locks have rubber-coated ends?
Rubber-coated ends improve grip and help protect vehicle walls, wooden slats, and cargo from damage. The rubber surfaces reduce slipping and help keep the restraint board securely in position.
What is the blocking capacity of Sandax cargo partition locks?
Sandax aluminium cargo partition locks have a blocking capacity of approximately 400 daN. This value indicates the force the restraint device is rated to withstand when blocking cargo. Its suitability must always be assessed in relation to the load, vehicle, mounting points, and overall securing method.
What sizes of cargo partition locks are available?
Sandax offers telescopic cargo partition locks in several adjustment ranges, including 1,220–1,520 mm, 1,500–1,800 mm, and 2,400–2,700 mm. This allows customers to choose a suitable restraint board for different cargo-area widths in trucks, vans, trailers, and other commercial vehicles.
When is an adjustable cargo partition lock useful?
An adjustable cargo partition lock is useful when different vehicles, cargo area widths, or loading conditions need to be accommodated. Its continuously adjustable length makes it particularly practical for freight companies, tradespeople, removals, delivery services, and changing transport operations.
Which vehicles can cargo partition locks be used in?
Cargo partition locks can be used in trucks, vans, Sprinter-type vehicles, box-body vehicles, flatbed vehicles, curtain-sided vehicles, and utility trailers. The cargo area must have suitable support or attachment points, and the lock's adjustment range must match its internal width.
Can cargo partition locks also be used in trailers?
Yes, depending on the trailer design and cargo area, cargo partition locks can also be used in trailers, including utility trailers towed by passenger cars. They can help secure small to medium-sized loads such as boxes, furniture, tools, building materials, and general cargo. It is essential that the device is firmly installed and can provide sufficient clamping and blocking force.
What is the difference between a cargo partition lock and a cargo restraint bar?
Cargo partition locks are usually designed as adjustable boards or planks and are often secured against wooden side slats or suitable side walls. Cargo restraint bars are generally round or rectangular bars which, depending on the design, are braced between walls or fitted into rail systems. Both provide positive load restraint but differ in design, application, and attachment method.
Can a cargo partition lock replace tie-down straps?
A cargo partition lock can supplement or partially replace tie-down straps in some situations when the load is adequately blocked through positive restraint. In many cases, combining partition locks with tie-down straps and anti-slip materials is advisable. The cargo must always be sufficiently secured against movement in all relevant directions.
How do I use a cargo partition lock correctly?
Measure the cargo area before use and adjust the cargo partition lock to the appropriate length. Position it correctly and secure it using the tensioning lever. Then check that the board is firmly seated, cannot slip, and effectively restrains the cargo.
What mistakes should be avoided when using load restraint boards?
Common mistakes include incorrect length adjustment, a lever that is not fully engaged, unsuitable support points, damaged rubber coatings, or insufficient blocking capacity for the load. A restraint board positioned at an angle, left loose, or braced against unstable surfaces cannot reliably secure cargo.
How should I inspect a cargo partition lock before use?
Before each use, check the aluminium profile, steel ends, rubber coatings, and tensioning lever for damage. Deformation, excessive wear, missing rubber, corrosion, or a malfunctioning tensioning mechanism are warning signs. Damaged cargo partition locks should be taken out of service.
Can I buy cargo partition locks directly from Sandax?
Yes, you can buy Sandax aluminium cargo partition locks directly from the online shop. Various adjustable sizes with an approximate blocking capacity of 400 daN are available. If the right model is not part of the standard range, Sandax can offer advice and customized mechanical cargo securing solutions.
Buying advice for intermediate wall locks
The decision to purchase the right intermediate wall lock can vary depending on the specific needs of your load securement. Here are some key considerations to help you make an informed decision.Choosing the right material:
- Aluminium: Ideal for most transport requirements due to its lightness and corrosion resistance.
Aluminium is suitable for everyday use and offers a good balance between strength and weight.
- Steel: More suitable for heavy loads and more demanding environments. Steel offers increased strength
and durability, making it a favoured choice in industry.
- Make sure you know the dimensions of your cargo area to choose a bulkhead lock that will fit effectively and keep your load secure.
- Consider the extendable length of the latches to allow flexibility to fit different cargo space
configurations.
- Adjustability: Some models offer adjustable options that allow for a more precise fit to the cargo
space and load type.
- Rubberised ends: These provide additional grip and protect both the load and the vehicle walls from
damage.
- Dropside fasteners are available in different price ranges, tailored to budget requirements and
frequency of use.
- Consider purchasing bulkhead fasteners that are inexpensive if you need to replace them regularly, or
invest in higher quality models for long-term use.
The selection of the appropriate intermediate wall lock is crucial for the safety and efficiency of load securing. With the information presented, we hope to have given you a clear idea of the benefits, areas of application and specific characteristics of the divider closures available from Sandax.
