Order round locking beams & loading beams for load securing
Drivers and road traffic are extremely at risk if loads suddenly slip. The German Road Traffic Regulations (StVO) therefore require loads to be stowed and secured in such a way that the load cannot slip even in the event of sudden emergency braking or swerving. The driver as well as the owner and loader are responsible for ensuring that the load is properly secured.
With Sandax loading beams, round locking beams and locking bars you not only minimise the risk of accidents, but also avoid expensive fines and damage to your load.
Sandax aluminium loading beams are used to secure loads to the rear and to create a second loading level. They are made of high-strength aluminium and have two steel end pieces for attaching to an anchor combination lashing rail. The blocking force / load-bearing capacity is approx. 1000daN with uniform area utilisation.
Our round blocking beams are suitable for different types of vehicles as they are very easy to adjust in length. With the help of a dowel pin, the round barrier beam is very easy to adapt to different interior spaces. The round barrier beams are available with different pins, and as an aluminium or steel version
If you cannot find the right product for your needs in this category, please do not hesitate to contact us. We will find a good solution for you!
Overview of round barrier beams
The following products are available from us
Aluminium Ladebalken f. Anker-Kombizurrschiene, 2334-2613 mm
Dieses Produkt, speziell entwickelt für die flexible Anwendung in der Logistikbranche, bietet eine verstellbare Länge von 2310 bis 2590 mm, um sich perfekt an verschiedene Frachträume anzupassen. Die einfache Handhabung und schnelle Montage machen ihn zum idealen Partner für Spediteure, LKW-Fahrer und alle, die Wert auf effiziente und sichere Transportlösungen legen. Dank seiner Kompatibilität mit Anker-Kombizurrschienen bietet er eine Vielzahl an Befestigungsmöglichkeiten, um Ihre Ladung unterwegs optimal zu schützen.Der Ladebalken zur Ladungssicherung von Sandax ist die perfekte Wahl für alle, die Wert auf höchste Sicherheit und Flexibilität beim Transport legen. Dieser Aluminium Balken wurde speziell für die Anforderungen der modernen Logistik entwickelt und überzeugt durch seine robuste Bauweise, das geringe Eigengewicht und die vielseitigen Einsatzmöglichkeiten.Produkt-Highlights:Verstellbare Länge: Der Ladebalken ist stufenlos von 2310 mm bis 2590 mm ausziehbar und passt sich so optimal an verschiedene Frachträume an. Material: Gefertigt aus hochwertigem, widerstandsfähigem Aluminium – für maximale Stabilität bei minimalem Gewicht. Blockierkraft: Mit einer beeindruckenden Blockierkraft von 1000 daN sorgt der Ladungssicherung Balken für sicheren Halt von Paletten, Kisten und anderen Packstücken.Kompatibilität: Speziell entwickelt als Ladebalken für Zurrschienen – ideal für Anker-Kombizurrschienen und vielseitig einsetzbar in LKWs, Transportern und anderen Nutzfahrzeugen. Einfache Handhabung: Schnelle Montage und Demontage ermöglichen einen flexiblen Einsatz im hektischen Transportalltag. Technische Daten zum Aluminium Ladebalken für Anker-KombizurrschienenMaterial: AluminiumVerstellbereich: 2310 mm – 2590 mm (231cm - 259cm bzw. 2,31m - 2,59m)Blockierkraft: 1000 daNAnwendung: Blockieren von Paletten und PackstückenKompatibilität: Anker-KombizurrschieneAnzahl pro Palette: 100Ihre Vorteile auf einen Blick ✅ Ladebalken Ladungssicherung: Sichert Ihre Ladung zuverlässig gegen Verrutschen und Umkippen – auch bei schweren Gütern.✅ Ladungssicherung Balken: Flexibel einsetzbar für verschiedene Laderaumgrößen und Transportanforderungen.✅ Aluminium Balken: Langlebig, korrosionsbeständig und besonders leicht zu handhaben.✅ Ladebalken für Zurrschienen: Kompatibel mit gängigen Anker-Kombizurrschienen für maximale Flexibilität bei der Befestigung.Anwendungsbereiche von Alu-LadebalkenSpeditionen und LogistikunternehmenLKW-Fahrer und FuhrparkbetreiberVerlader von Paletten, Kisten und anderen PackstückenAlle, die auf mechanische Ladungssicherung setzen
Aluminum loading beam for anchor combination lashing rail, 2310-2590 mm
This product, specially developed for flexible use in the logistics industry , offers an adjustable length from 2310 to 2590 mm to perfectly adapt to different cargo spaces. Its ease of use and quick installation make it the ideal partner for freight forwarders, truck drivers , and anyone who values efficient and safe transport solutions. Thanks to its compatibility with Anker combination lashing tracks, it offers a variety of fastening options to optimally protect your cargo while in transit. The Sandax loading beam for load securing is the perfect choice for anyone who values maximum safety and flexibility during transport. This aluminum beam was specially developed for the demands of modern logistics and impresses with its robust construction , low weight , and versatile application possibilities. Product highlights: Adjustable length : The loading bar can be extended continuously from 2310 mm to 2590 mm and thus adapts optimally to different cargo spaces. Material : Made of high-quality, durable aluminum – for maximum stability with minimal weight. Blocking force : With an impressive blocking force of 1000 daN, the load securing bar ensures secure hold of pallets, boxes and other packages. Compatibility : Specially designed as a loading bar for lashing rails - ideal for anchor combination lashing rails and versatile use in trucks, vans and other commercial vehicles. Easy handling : Quick assembly and disassembly enable flexible use in hectic everyday transport operations. Technical data for the aluminum loading beam for anchor combination lashing rails Material : aluminum Adjustment range : 2310 mm – 2590 mm (231 cm - 259 cm or 2.31 m - 2.59 m) Blocking force : 1000 daN Application : Blocking pallets and packages Compatibility : Anchor combination lashing rail Number per pallet : 100 Your benefits at a glance ✅ Loading bar load securing : Reliably secures your load against slipping and tipping over – even with heavy goods. ✅ Load securing bars : Can be used flexibly for different loading space sizes and transport requirements. ✅ Aluminum beams : Durable, corrosion-resistant and particularly easy to handle. ✅ Loading bar for lashing rails : Compatible with standard anchor combination lashing rails for maximum flexibility when fastening. Application areas of aluminum loading beams Freight forwarders and logistics companies Truck drivers and fleet operators Shippers of pallets, boxes and other packages All those who rely on mechanical load securing
Round barrier beam aluminum with 24 mm pin 1600-2000 mm
Secure your load like never before with our round aluminum shoring beam, equipped with a robust 24 mm pin for ultimate stability and support ! This premium transport accessory, adjustable from 1600 to 2000 mm, adapts seamlessly to your needs and offers flexible solutions for securing a wide variety of loads. Made from high-quality aluminum , this shoring beam is not only exceptionally lightweight but also extremely durable against the daily rigors of the transport industry . The innovative 24mm pin ensures easy handling and quick installation in compatible loading rails. Whether you're involved in professional freight transport or need to handle private transport tasks, our round shoring beam offers the optimal blend of flexibility, strength, and durability .
Round shoring beam made of aluminium with combination pin 19/24 and slot for rod lashing rail 1600-2090 mm
This shoring beam can be effortlessly extended between 1600 and 2090 mm to perfectly adapt to the size of your load space. Manufactured from high-quality aluminum, this shoring beam combines lightness with exceptional strength , making it easy to handle and adapt to your specific needs. The 19/24 combo pin allows compatible use with standard lashing rail systems , while the integrated slot for rod lashing rails offers additional fastening options for your load. Ideal for use in trucks and other means of transport , this round shoring beam offers an effective solution for keeping your goods safe and secure during transport. Expand your load securing options with this practical and durable tool, specifically designed to make the transport of your goods safer and more efficient .
Round shoring beam made of aluminium with combination pin 19/24 and slot for rod lashing rail 2360 - 2760 mm
The Sandax round locking beam made of aluminum is a well-thought-out, universally applicable solution for form-fitting load securing in a wide variety of transport vehicles. Thanks to its high-quality aluminum construction, it combines high stability with a comparatively low weight - ideal for daily, quick use in forwarding, logistics, warehousing or trades . This round locking beam for trucks and vans can be extended continuously from 2360 mm to 2760 mm and is therefore suitable for loading spaces of different sizes . A special highlight is the integrated combination pin , which fits both 19 mm and 24 mm mounts . The beam also features a slot for rod lashing rails , making it compatible with a wide variety of vehicle and rail systems . Technical product data at a glance Product type : Round locking beam / locking bar for load securing Material : aluminum (high quality, corrosion-resistant, lightweight) Length adjustment : Continuously adjustable from 2360 mm to 2760 mm Pin holder : combination pin (suitable for 19mm and 24mm lashing rails ) Special feature : Integrated slot for rod lashing rail (airline system) Your advantages with the Sandax round barrier beam made of aluminum ✅ Compatible with almost all rail systems : Thanks to the combination pin (19/24 mm) and additional slot for rod lashing rail, this round barrier beam adapts flexibly to common airline rails and round hole systems - ideal for vehicles with different equipment. ✅ Stable yet lightweight : The aluminum construction is not only sturdy, but also corrosion-resistant and significantly lighter than comparable steel models – for fatigue-free work in daily use. ✅ Can be used in vans, trucks and trailers : The large adjustment range of 2360–2760 mm makes the round locking beam suitable for trucks as well as for smaller vans or trailers – ideal for haulage companies with a mixed fleet. ✅ Quick and easy to assemble : The stepless length adjustment and smooth clamping mechanism make handling particularly efficient – simply clamp and secure. ✅ Versatile combinations : In combination with anti-slip mats, tensioning straps, edge protectors or partition walls, the round barrier beam offers a continuous safety system. Typical applications of these round locking beams made of aluminum with combi-pins Round barrier beams in trucks and box vehicles : securing Euro pallets, boxes or big bags in long-distance and local transport Load securing in the van : Quick fixation of general cargo, furniture, equipment or tool boxes Construction site logistics : Safe transport of materials and machines on open or closed loading areas Branch deliveries / courier services : subdivision of the loading space and protection against goods movement in partial deliveries Instructions & Tip Adjust the bar to the desired length between the loading area walls. Insert the pins into the appropriate lashing rails (19 mm or 24 mm) or use the slot for rod lashing rails. Tip : Two or more locking bars placed on top of each other provide even greater stabilization – for example, with high or unstable loads. Sandax – Safety in motion Sandax stands for proven brand quality in load securing technology . Our products are developed in Germany and tested under real operating conditions – for optimal function, durability and safety . The round aluminum barrier beam with combination pin is a typical product in the Sandax online shop: well thought out, robust and practical . 👉 Trust Sandax – if you want to secure your cargo with just one hand.

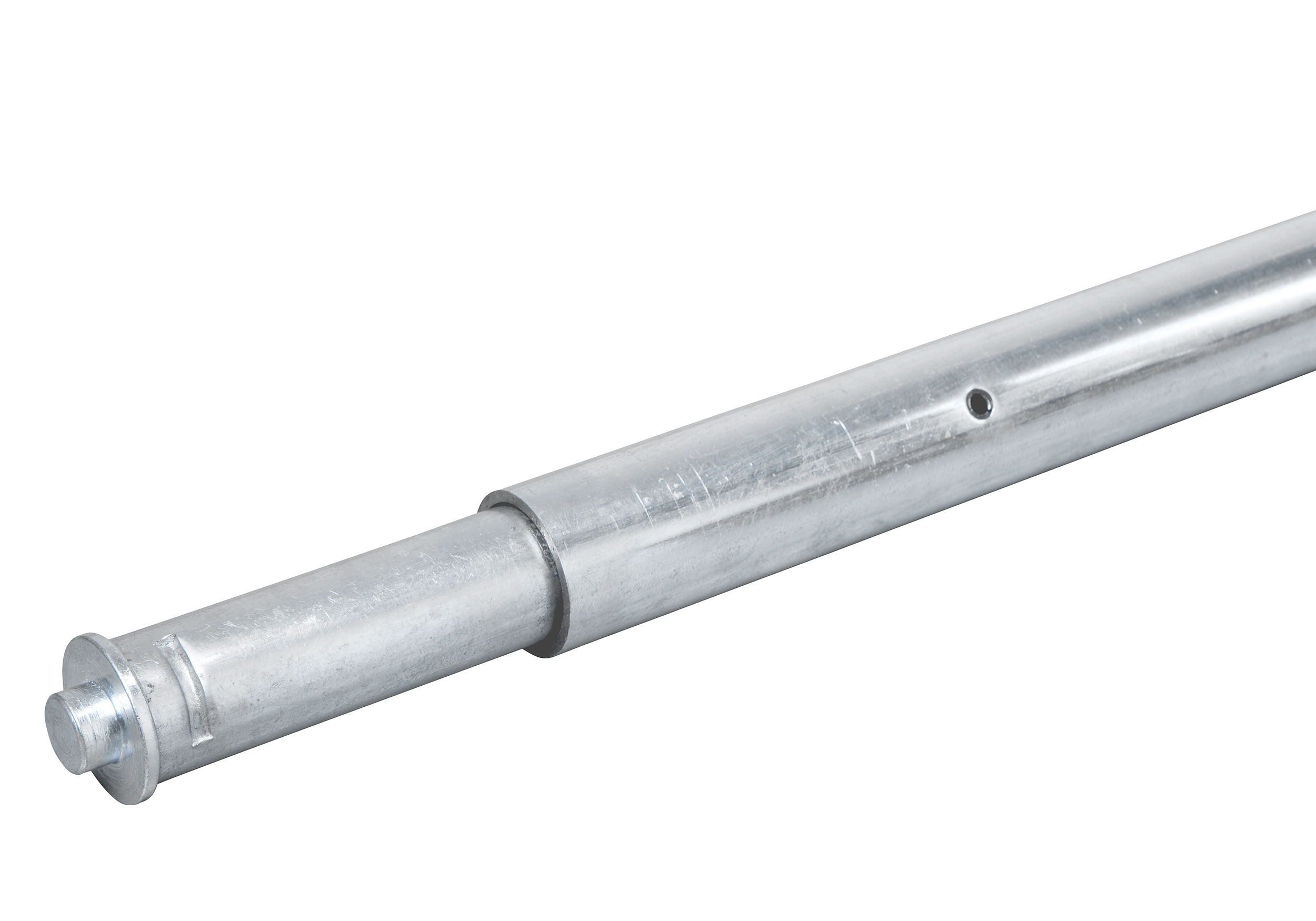

Round steel barrier beam with 19 mm pin, length: 2570 mm, with wider pin edge
Specially designed for professional use, this round shoring beam is distinguished by its length of 2570 mm and is equipped with a wider pin edge to ensure even better fixation and security. Manufactured from high-quality steel, this round shoring beam offers exceptional durability and resistance to stress and wear . Its design is precisely tailored to the requirements of the transport industry to enable optimal load securing in trucks and on trailers. Whether heavy pallets, machinery, or other bulky goods – our round shoring beam ensures a secure hold and prevents your load from slipping or tipping during transport . Invest in this reliable solution to make your transport more efficient and safer.
Round steel barrier beam with 24 mm pin 2300-2750 mm
Specially designed for professional use, this round shoring beam stands out with its length of up to 2750 mm and is equipped with a wider pin edge to ensure even better fixation and security. Manufactured from high-quality steel , this round shoring beam offers exceptional durability and resistance to stress and wear. Its design is precisely tailored to the requirements of the transport industry to enable optimal load securing in trucks and on trailers. Whether heavy pallets, machinery, or other bulky goods , our round shoring beam ensures a secure hold and prevents your load from slipping or tipping during transport. Invest in this reliable solution to make your transport more efficient and safer .
Transporter round locking beam aluminum with combi-pin 19/24 and slot for rod lashing rail 1420-1910
This shoring beam extends effortlessly between 1420 and 1910 mm to perfectly adapt to the size of your cargo space. Manufactured from high-quality aluminum, this shoring beam combines lightness with exceptional strength , making it easy to handle and adapt to your specific needs. The 19/24 combo pin allows for compatible use with standard lashing rail systems , while the integrated slot for rod lashing rails offers additional fastening options for your load. Ideal for use in trucks and other means of transport, this round shoring beam offers an effective solution for keeping your goods safe and secure during transport . Expand your load securing options with this practical and durable tool, specifically designed to make the transport of your goods safer and more efficient .
Buy round locking beams and loading beams
Round locking beams and loading beams are crucial tools in load securing, specially designed to stabilise and secure goods during transport in vehicles such as trucks, trailers and vans. These aids prevent the load from shifting, which not only increases safety on the roads, but also minimises damage to the cargo.- Circular barrier beams: These are typically cylindrical and can be easily adapted to the width of
different cargo holds. They are ideal for use in lorries and large transport vehicles where heavy and large
loads need to be secured.
- Loading beams: Often rectangular in shape, these beams are used to secure and also create second
loading levels, effectively improving space utilisation in transport vehicles.
- Aluminium and steel: Most round locking beams and loading beams are made of these materials, with
aluminium being particularly popular due to its lightness and corrosion resistance. Steel is valued for its
robustness and load-bearing capacity, especially with heavy loads.
- Adjustability: Many models are adjustable and allow flexible adaptation to different vehicle sizes
and load volumes. This increases their applicability and efficiency in different transport contexts.
- Freight forwarding and logistics: In professional freight transport, these beams are essential
for
keeping loads secure during the journey.
- Private use: They also offer efficient solutions for securing loads in the private sector, such
as
when moving house or transporting sports equipment.
- Special transport: For special transport tasks, such as sensitive or unusually shaped goods,
specially manufactured locking beams and loading beams offer secure fastening options.
Areas of application and advantages of round barrier beams and loading beamsRound barrier beams
- Transport: These beams are used in trucks, vans and trailers to stabilise and secure loads during
transport. They prevent goods from shifting, which is particularly important on long journeys or on uneven
roads.
- Industry and trade: In industry, they are used to secure heavy and bulky goods such as machines or
large appliances. In the commercial sector, they protect sensitive goods from damage during transport.
- Private use: They also offer an effective way of transporting loads safely in your own vehicle in the
private sector, such as when moving house or transporting leisure equipment.
- Safety: The main function of the round locking beams and loading beams is to secure the load, which
increases safety on the roads and minimises damage to the load.
- Adaptability: Their adjustable nature means they can be easily adapted to different load compartment
sizes and load types, making them particularly practical.
- Cost savings: By preventing cargo damage, these beams help to avoid potential costs for repairs or
replacement of damaged goods.
- Simplicity and efficiency: Their ease of installation and handling saves time and labour when
preparing shipments.
Technical specifications
- Length: Round locking beams and load beams are typically adjustable, allowing them to be adapted to
the width of the load compartment. Lengths vary to cover a wide range of vehicle sizes, from small vans to
large freight lorries.
- Load capacity: The load capacity indicates how much weight the beam can safely support. This is
particularly important when securing heavy loads to ensure that the beam does not give way under
pressure.
- Material thickness: The thickness and material of the beam affects its resistance to bending and
breaking. Aluminium beams provide lightness, while steel beams provide extra strength for heavier
loads.
Adjustability
- Adjustment mechanisms: Many barrier beams have quick and easy adjustment mechanisms, such as telescopic bars or sliding elements, which allow the length to be quickly adjusted without the need for tools.
- End fixings: The end fittings of the beams are crucial to their functionality. Some models offer
universal or customised ends that snap into existing lashing rails or anchorage points in the vehicle.
Installation recommendations
- Mounting position: The optimum positioning of the beams depends on the type of vehicle and the load.
They should be positioned so that they effectively support the load and distribute the load evenly when the
vehicle moves.
- Safety checks: Once installed, it is important to carry out regular checks to ensure that the beams
are firmly in place and show no signs of wear.
Buying advice for round barrier beams and
- Load type and weight: Consider the type of load you need to secure. Heavy or unusually shaped items
will require more robust and possibly customised solutions.
- Vehicle type: Make sure that the beams are suitable for the specific vehicle type and load
compartment size. This includes the length of the beams and their compatibility with existing fastening
systems such as airline rails.
- Aluminium vs. steel: Choose aluminium for lighter loads and for situations where flexibility and
corrosion resistance are important. Steel is the better choice for heavier loads as it offers greater
strength and resilience.
- Adjustable length: Look for beams with an adjustable length to ensure greater versatility in application and adaptation to different cargo spaces.
- Compatibility with lashing systems: Make sure the beams are compatible with your vehicle's lashing
systems, especially if you already have certain systems such as airline rails.
- Build quality: Look for high-quality workmanship that promises a long service life and reliability
under various transport conditions.
- Manufacturer's warranty: A good indicator of the quality of a barrier beam is often the warranty
offered by the manufacturer.
- Cost: Compare the prices of different models and brands. Bear in mind that a higher price often
reflects better quality and additional features, which can be a worthwhile investment.
Frequently Asked Questions About Round Shoring Bars and Load Beams
Below you will find important questions and answers about round shoring bars, load beams, cargo blocking bars, and their use for mechanical cargo securing in trucks, vans, trailers, and box-body vehicles.
What is a round shoring bar?
A round shoring bar is a mechanical load restraint device used to secure cargo by blocking it in place. It helps prevent pallets, crates, machinery, furniture, and other items from shifting, tipping, or falling over during transport. Depending on its design, its cylindrical shape allows it to be positioned flexibly in compatible lashing rails or mounting points.
What is a load beam used for in a truck?
A load beam is used to restrain cargo towards the rear of a truck, van, or trailer, or to create a second loading level. This helps make better use of the available cargo space and protects goods against movement during transport. Load beams are particularly practical in logistics, freight forwarding, and general cargo distribution.
What is the difference between a round shoring bar and a load beam?
Round shoring bars are typically cylindrical restraint devices used to block cargo. Load beams often have a rectangular or profiled design and may also be used to create a second loading level. Both provide mechanical cargo restraint but differ in shape, mounting system, and typical application.
When is a round shoring bar the right choice?
A round shoring bar is useful when cargo needs to be blocked quickly and flexibly inside a vehicle. It is particularly suitable for changing loads, partial loads, palletized goods, crates, general cargo, tools, furniture, bulk bags, or construction materials. Compatible rails, mounting brackets, or anchor points must be available in the vehicle.
When should I use a load beam?
A load beam is particularly suitable when cargo needs not only to be blocked but also supported or stored on a second level. This allows better use of the available cargo space. Load beams are often used with combination anchor tracks or other compatible rail systems.
What are the advantages of round shoring bars for cargo securing?
Round shoring bars can be installed quickly, reused, and adjusted flexibly to different cargo-area widths. They help block cargo securely, reduce transport damage, and organize the loading space more effectively. They are especially efficient for frequently changing transport tasks.
What are the benefits of load beams for lashing rails?
Load beams designed for lashing rails can be securely fitted into existing rail systems and positioned flexibly. This creates stable blocking or support points in the cargo area. They are particularly suitable for box-body vehicles, trucks, and vans where different loads are regularly secured or second loading levels are used.
What materials are round shoring bars and load beams made of?
Depending on the design, round shoring bars and load beams are available in aluminium or steel. Aluminium is lightweight, corrosion-resistant, and easy to handle in everyday use. Steel is often chosen for particularly robust applications, heavy cargo, or intensive transport operations.
When is an aluminium round shoring bar a good choice?
An aluminium round shoring bar is a good choice when low weight, quick handling, and corrosion resistance are important. It is suitable for many applications in vans, trucks, trailers, box-body vehicles, courier services, tradespeople's vehicles, and general cargo logistics.
When should I choose a steel round shoring bar?
A steel round shoring bar is suitable when especially high robustness and durability are required. Steel versions are often used for heavy pallets, machinery, construction materials, bulky goods, and intensive professional transport operations. The actual load rating depends on the specific model.

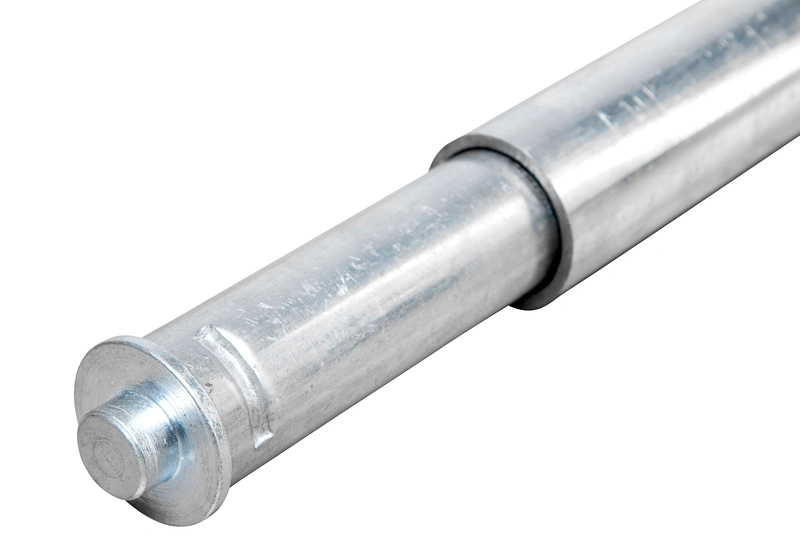

What does a 19/24 combination pin mean on a round shoring bar?
A 19/24 combination pin is an end fitting designed to work with different lashing rail systems. It allows a round shoring bar to be used with compatible 19 mm and 24 mm mounting points. This increases flexibility, especially for mixed vehicle fleets or vehicles equipped with different rail systems.
What is the slot for rod-type lashing rails used for?
A slot designed for rod-type lashing rails allows the round shoring bar to be used in vehicles fitted with the corresponding rail system. Depending on its design, the bar can therefore be used not only in standard round-hole or combination lashing rails but also in other compatible cargo securing systems.
What adjustment ranges are available for Sandax round shoring bars?
Sandax offers round shoring bars in several adjustable length ranges, including 1,420–1,910 mm, 1,600–2,000 mm, 1,600–2,090 mm, 2,300–2,750 mm, and 2,360–2,760 mm. This makes it possible to choose a suitable version for vans, trucks, trailers, and box-body vehicles.
What is the length of the aluminium load beam for combination anchor tracks?
The aluminium load beam for combination anchor tracks is continuously adjustable from 2,310 mm to 2,590 mm. It is suitable for trucks, vans, and other commercial vehicles fitted with compatible combination anchor tracks and can be used to block pallets, crates, and other cargo.
What is the load capacity of a Sandax load beam?
The Sandax aluminium load beam for combination anchor tracks has a specified capacity of approximately 1,000 daN under evenly distributed loading. Its suitability for a particular application always depends on the cargo weight, rail system, installation position, and overall load securing method.
Can a load beam create a second loading level?
Yes, suitable load beams can be used to create a second loading level, provided the beams and rail systems are rated for this purpose. This allows goods to be transported one above another without placing them directly on top of each other. It is particularly useful for delicate cargo, mixed shipments, or making more efficient use of the available cargo space.
Which vehicles are round shoring bars and load beams suitable for?
Round shoring bars and load beams are suitable for trucks, vans, Sprinter-type vehicles, box-body vehicles, box trailers, other trailers, and specialist vehicles. The key requirement is that compatible lashing rails, combination anchor tracks, rod-type lashing rails, or suitable mounting points are available.
Can round shoring bars replace tie-down straps?
Round shoring bars can supplement or partially replace tie-down straps in certain situations if the cargo is adequately restrained through positive blocking. Heavy, tall, or top-heavy cargo may require additional tie-down straps, anti-slip mats, or edge protection.
How do you install a round shoring bar correctly?
First, select a model with the appropriate adjustment range and set the bar to the required length. Insert its pins into the compatible lashing rails or mounting points, then position the round shoring bar correctly. Finally, check that the bar is securely engaged, cannot slip, and reliably blocks the cargo.
What mistakes should be avoided when using round shoring bars?
Common mistakes include using incompatible rail systems, incorrect pins, end fittings that are not fully engaged, an incorrect length setting, or a damaged bar. Insufficient blocking capacity or inadequate restraint of tall cargo can also compromise transport safety.
How should I inspect load beams and round shoring bars before use?
Before each use, check the profile, pins, end fittings, tensioning mechanism, locking system, and contact surfaces. Deformation, cracks, significant wear, corrosion, damaged pins, or stiff mechanisms are warning signs. Damaged round shoring bars or load beams should not be used for cargo securing.
Can I buy round shoring bars and load beams directly from Sandax?
Yes, you can buy round shoring bars and load beams directly from the Sandax online shop. Available options include aluminium and steel versions, various adjustment ranges, 19 mm pins, 24 mm pins, 19/24 combination pins, and load beams for combination anchor tracks. If you cannot find the right version in the standard range, Sandax can provide advice and customized solutions.
